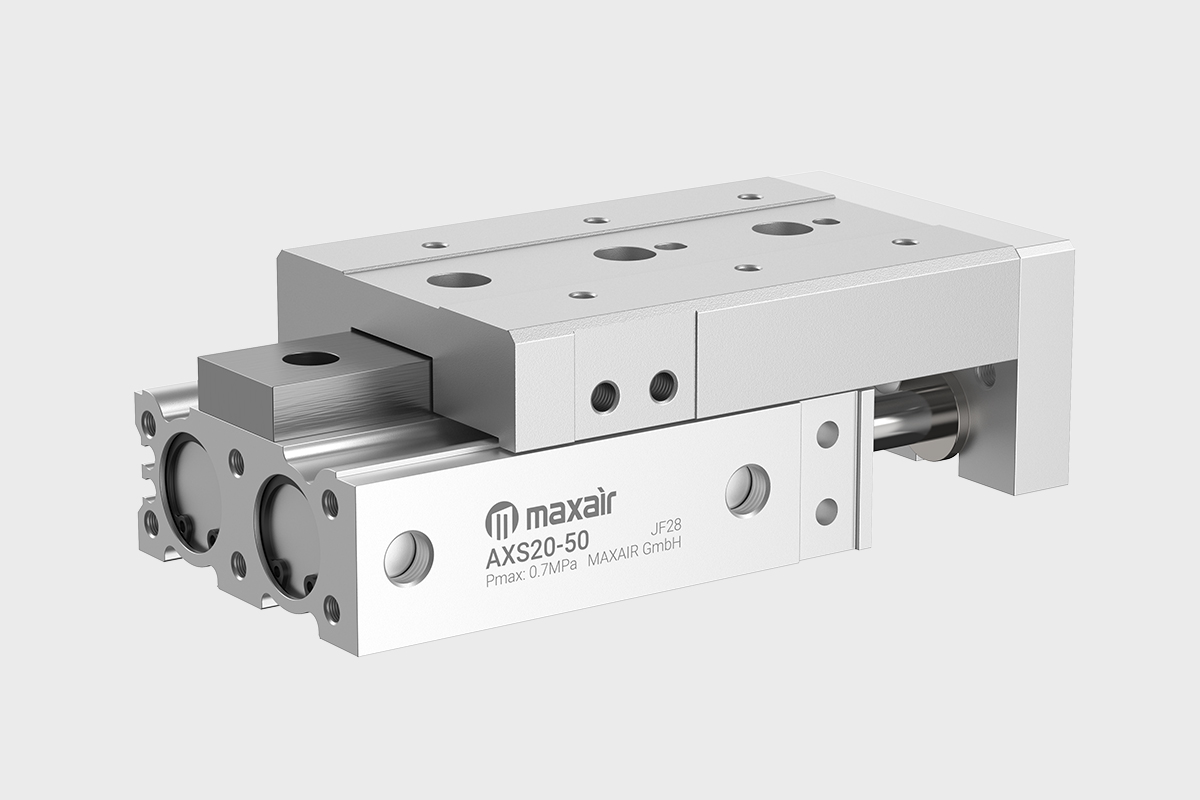

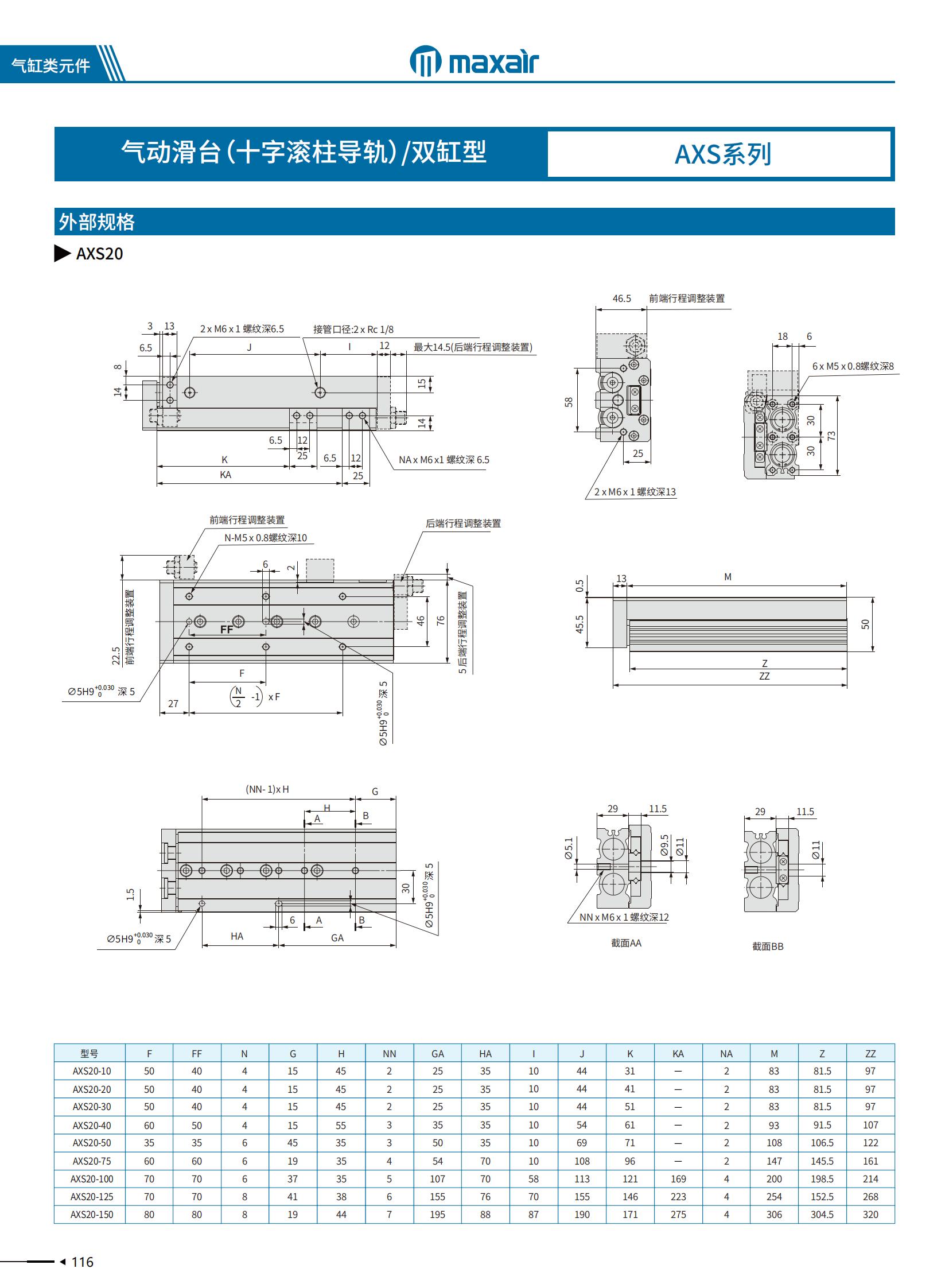

AXS Slide cylinder

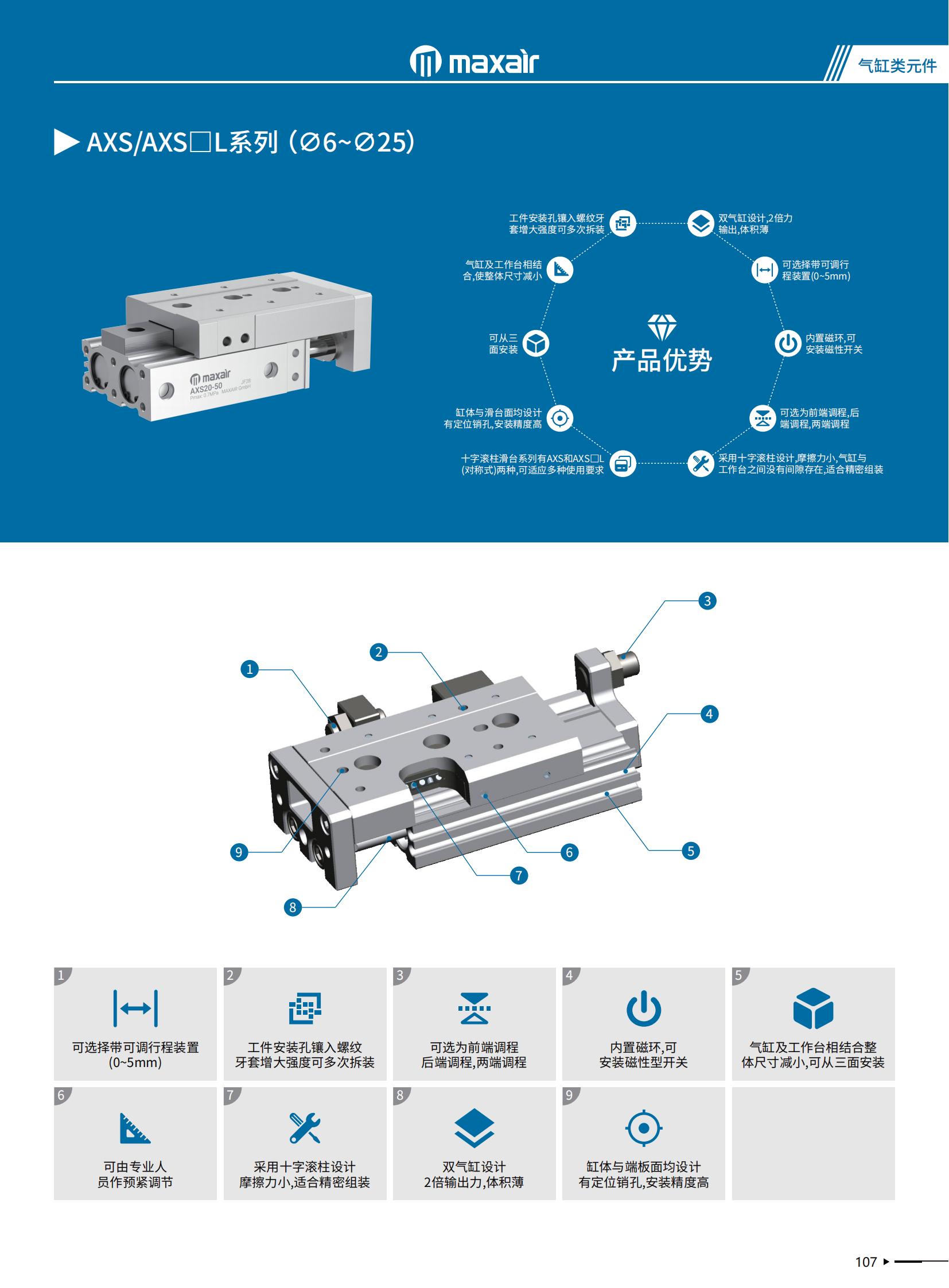

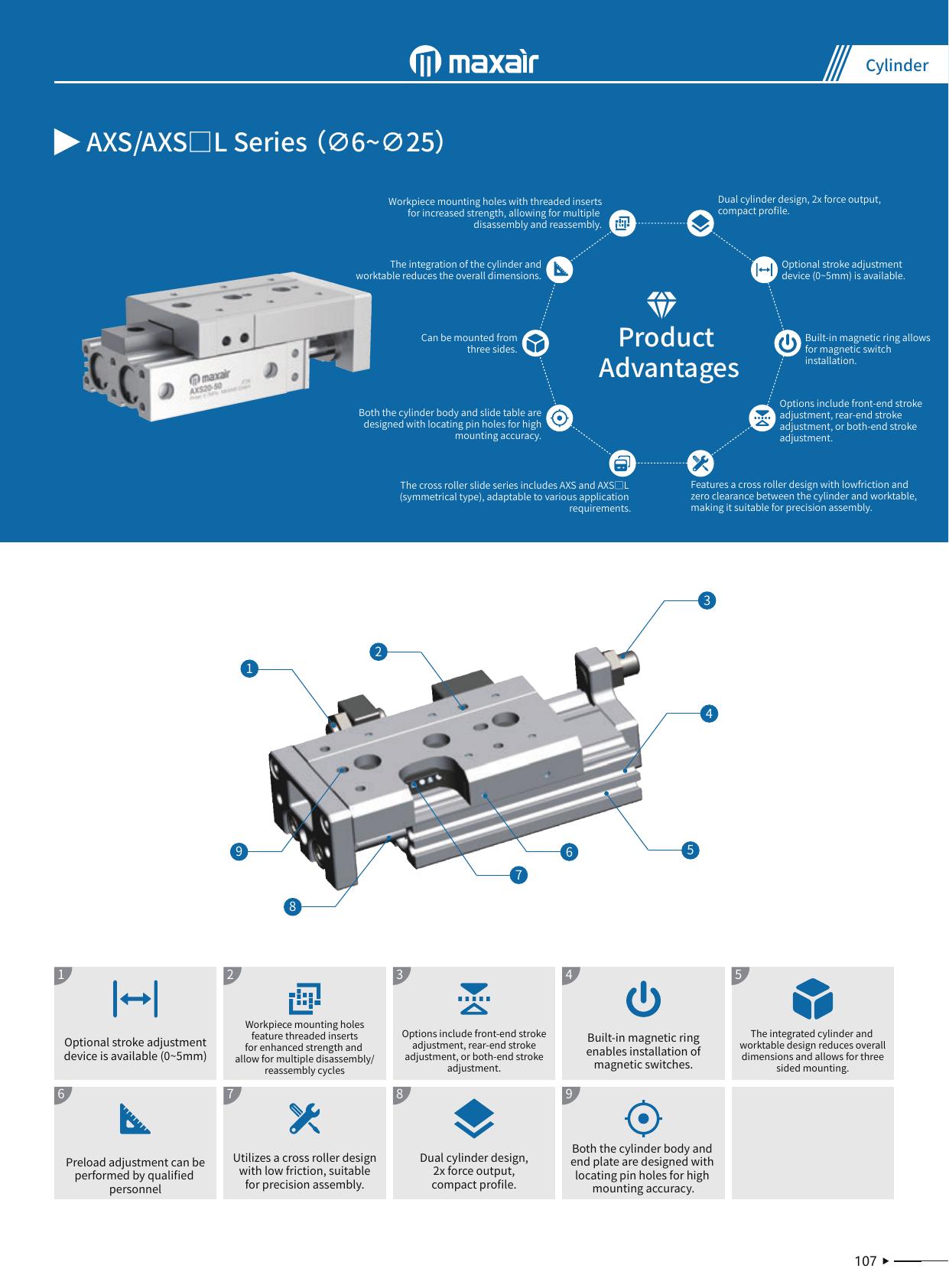

Dual cylinder design, 2x output force, thin volume
The combination of cylinder and worktable reduces the overall size
Adopting a cross roller guide rail design, with low friction and no gap between the cylinder and the worktable, suitable for precision assembly
Can be installed from three sides
Built in magnetic ring, capable of installing magnetic switches
Optional with adjustable travel device (0-5mm), available for front-end adjustment, back-end adjustment, and end-to-end adjustment
The workpiece installation hole is embedded with a threaded tooth sleeve to increase strength and can be disassembled multiple times
Both the cylinder body and the sliding table surface are designed with positioning pin holes for high installation accuracy

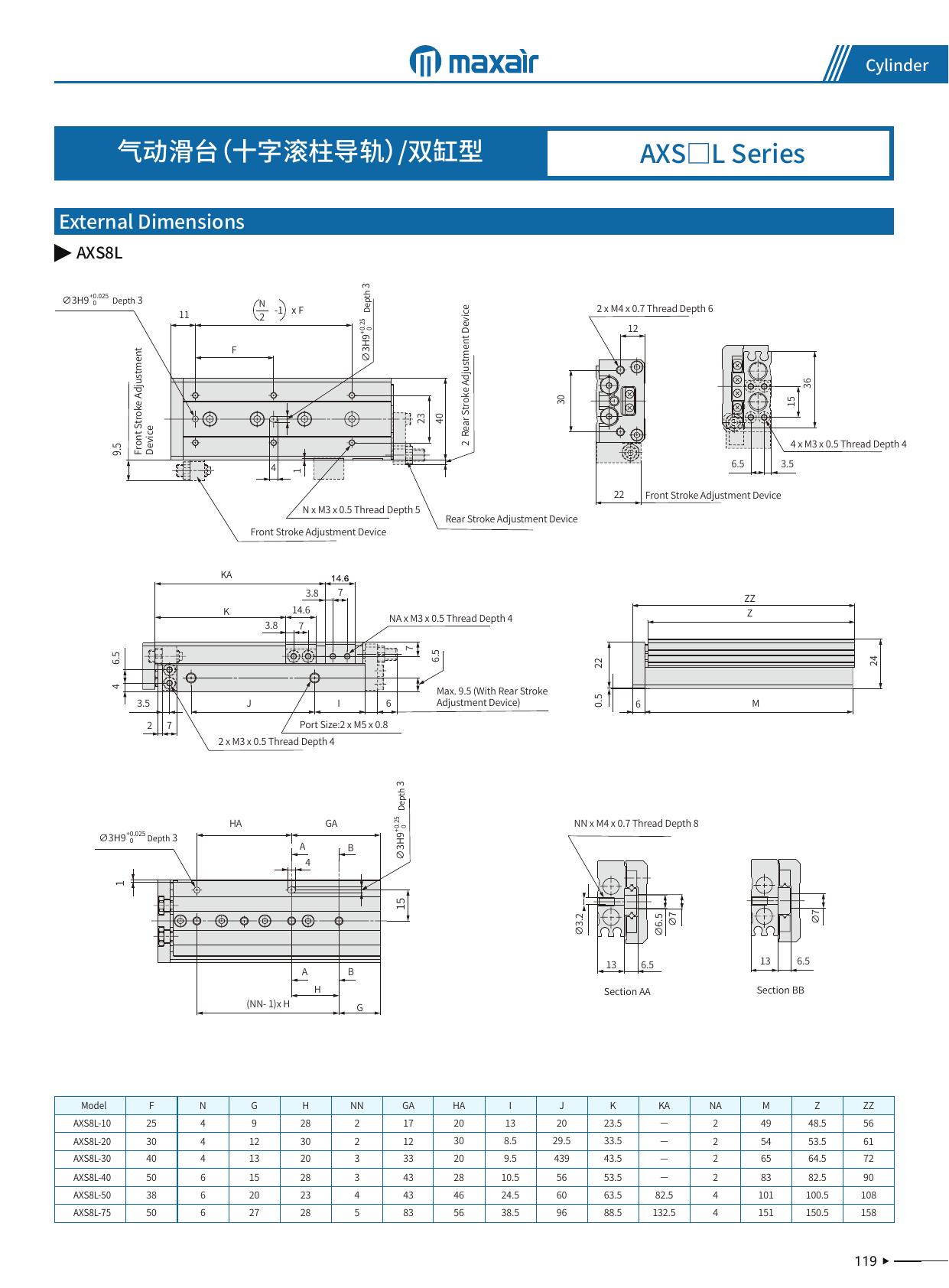

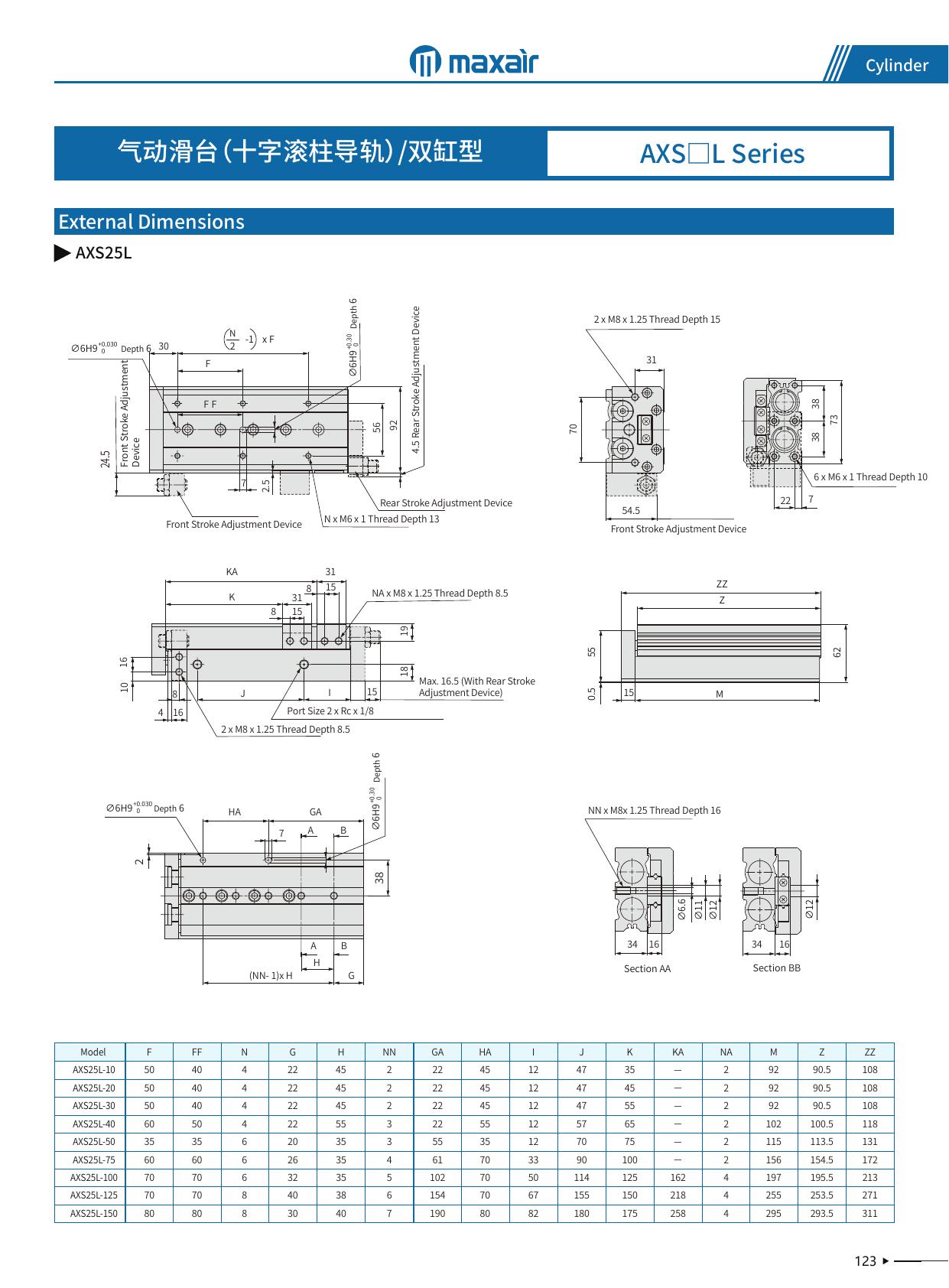

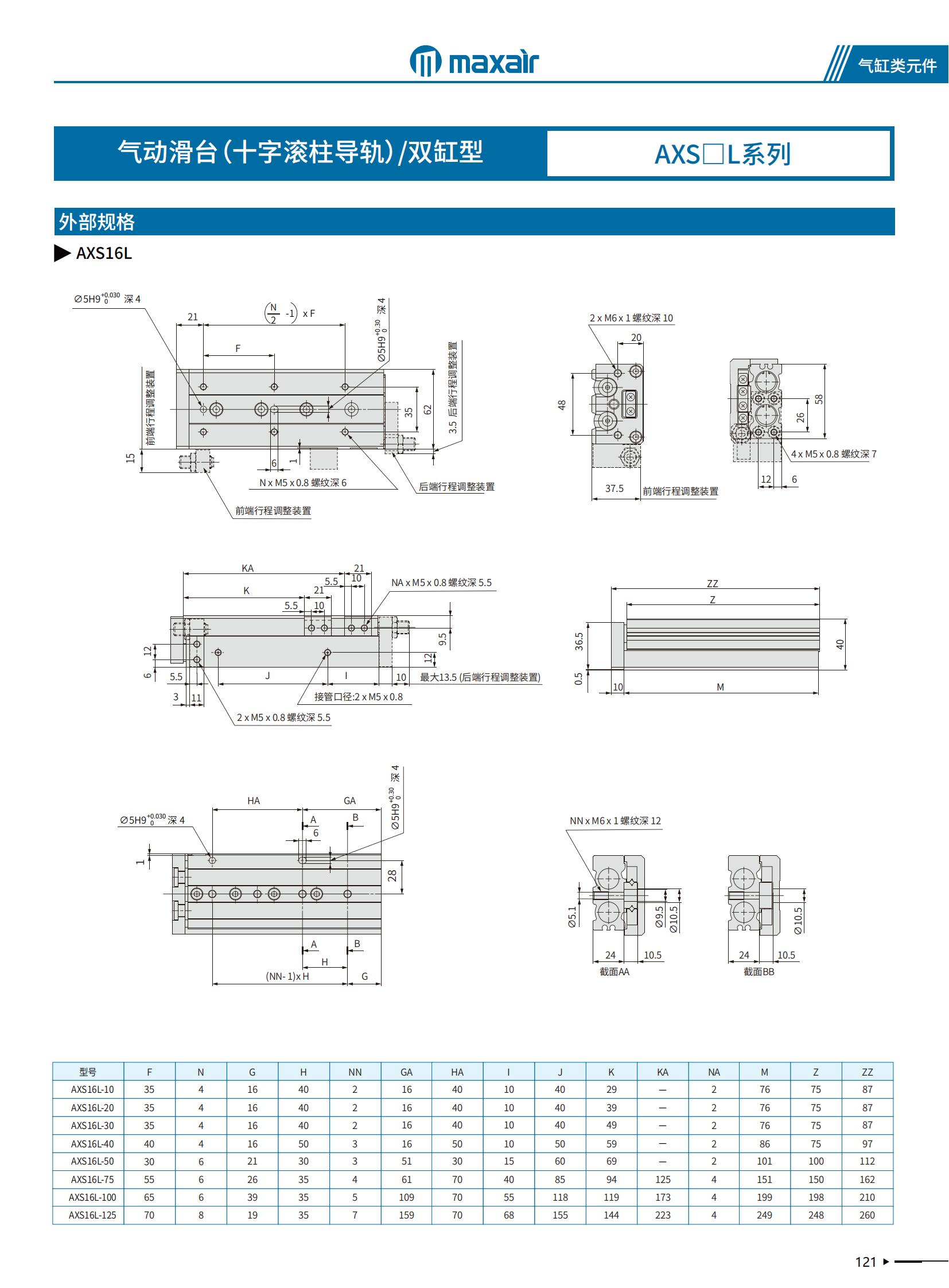

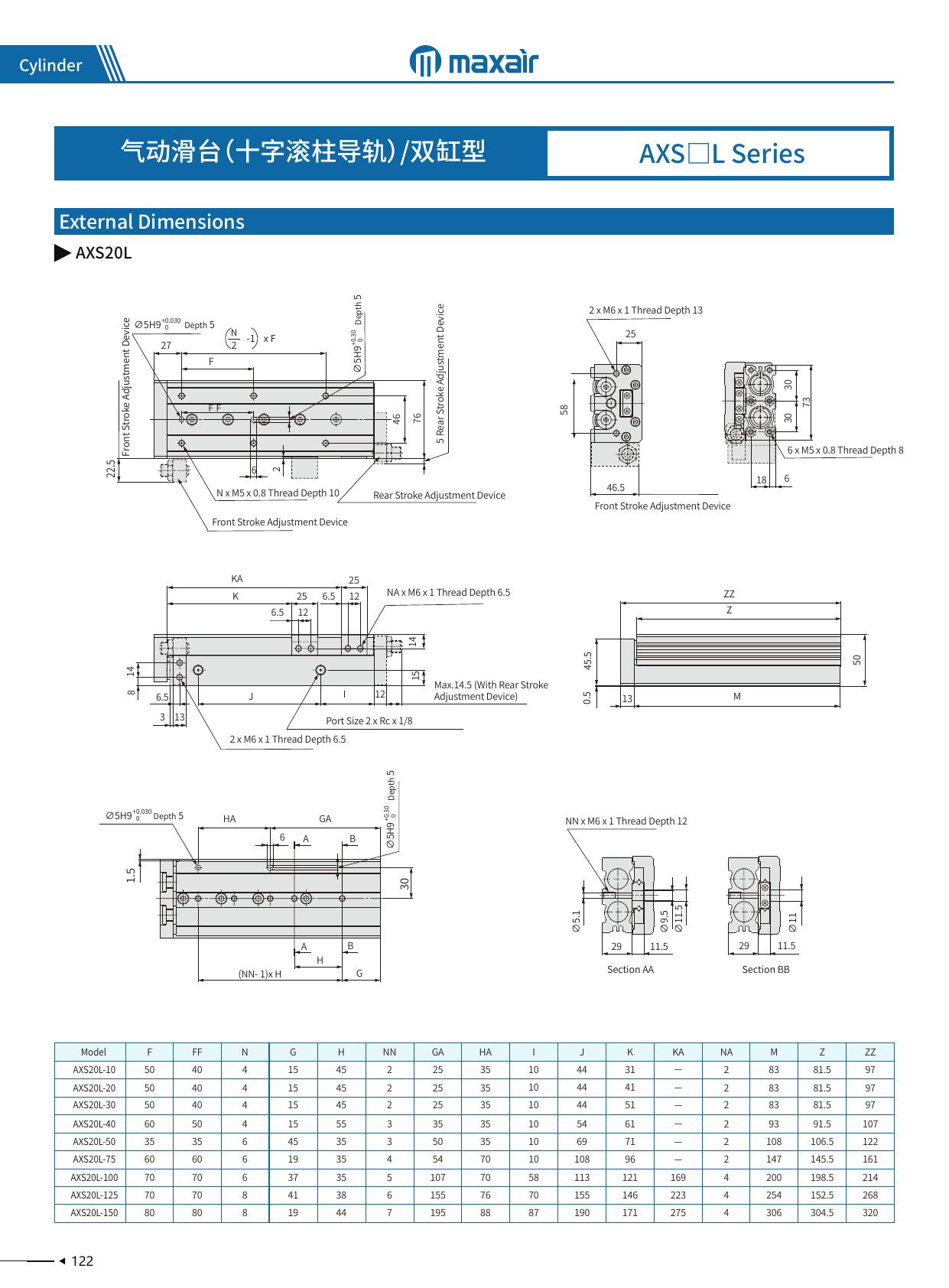

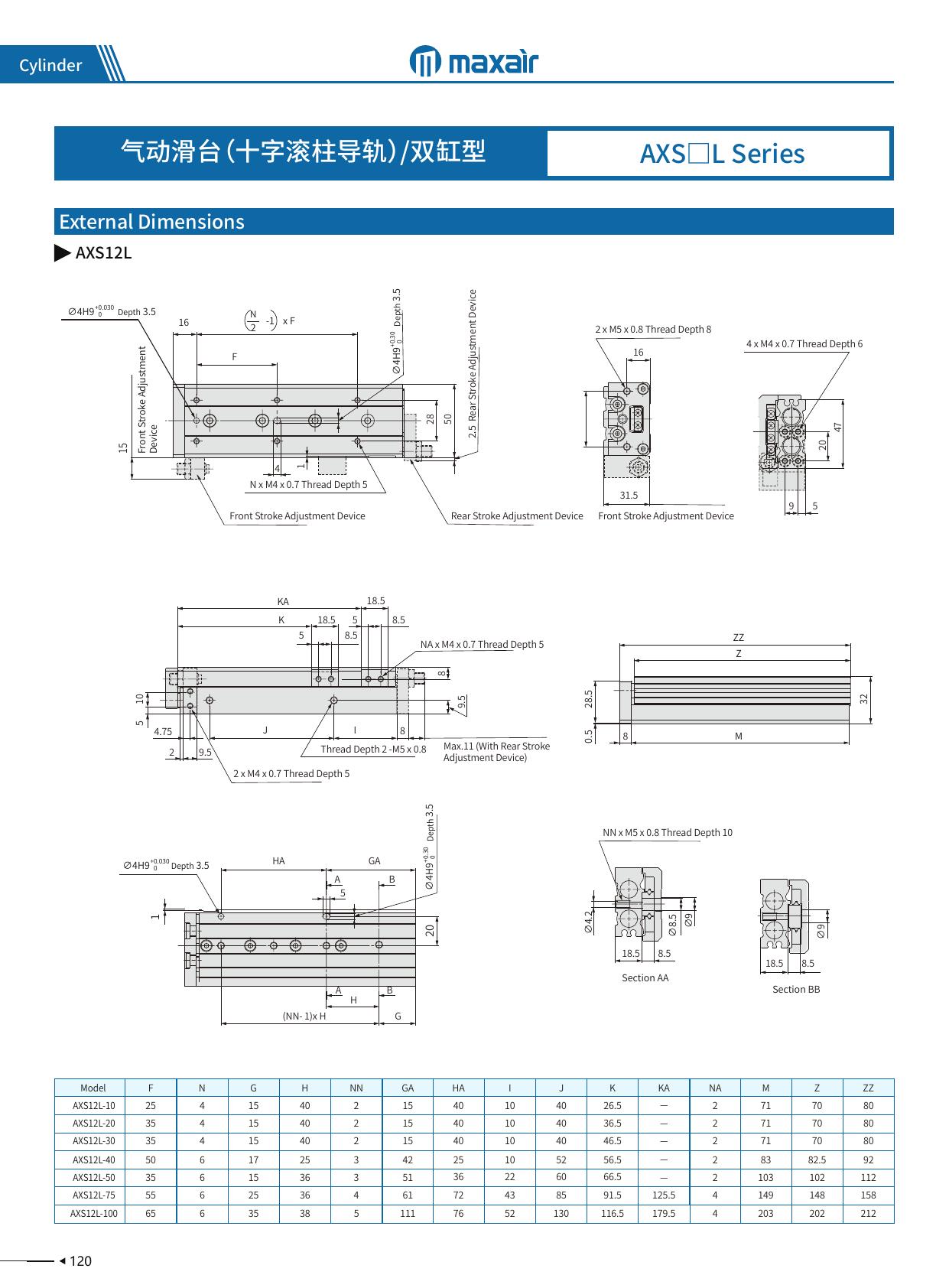

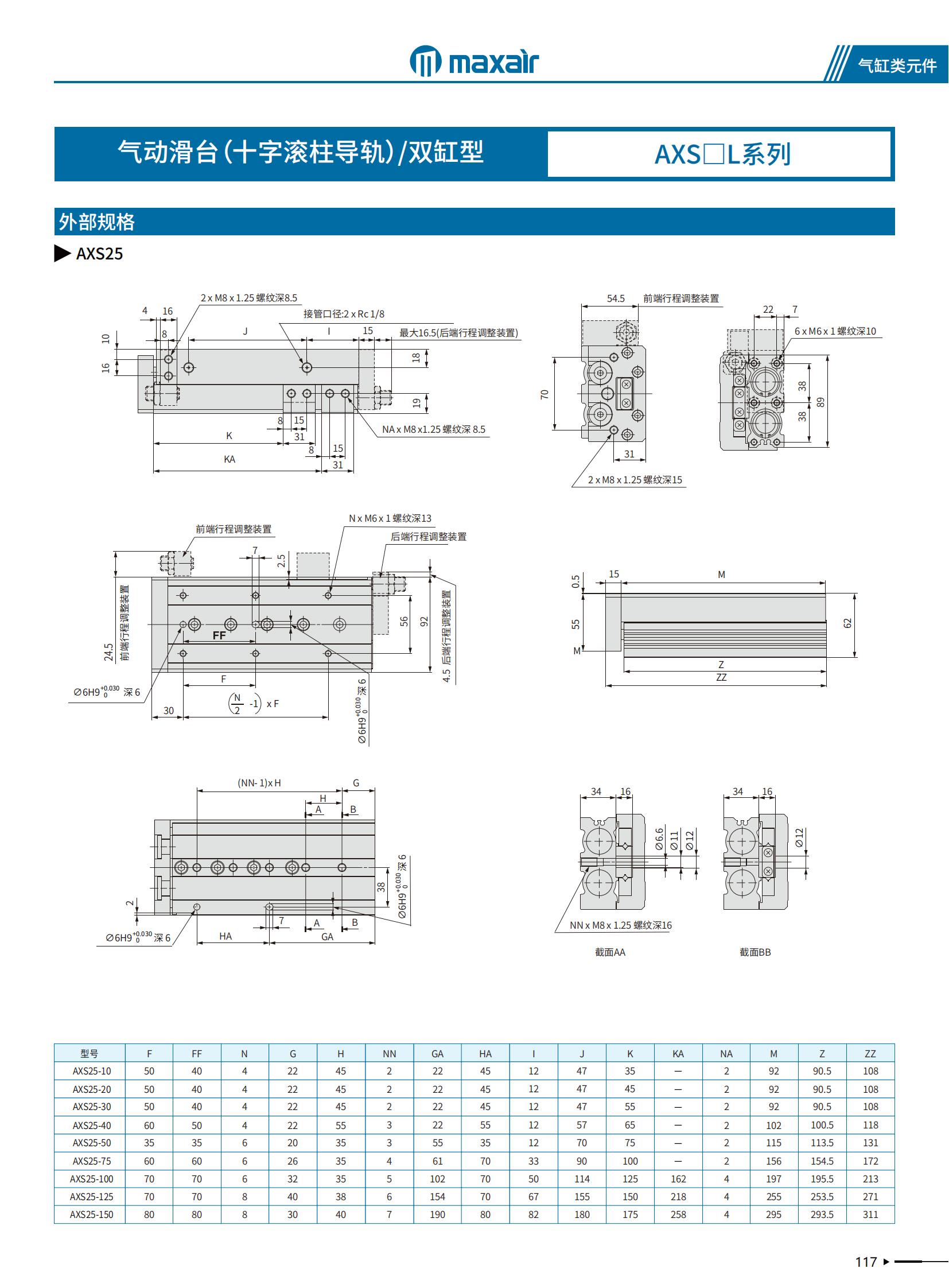

The cross roller sliding table series has two symmetrical types, AXS and AXS port L, which can adapt to various usage requirements
Professional personnel can pre tighten and adjust the guide rail

Product Introduction

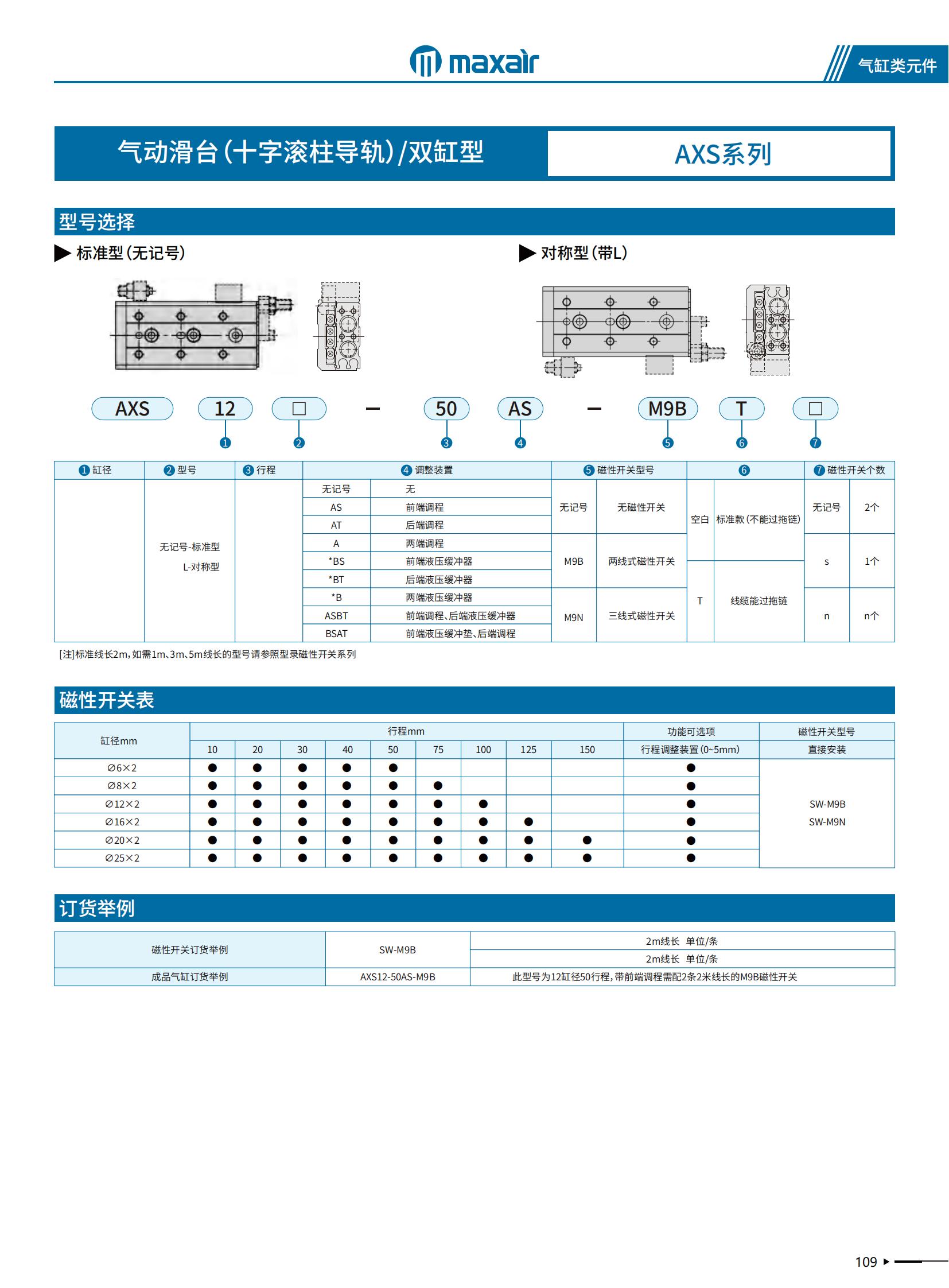

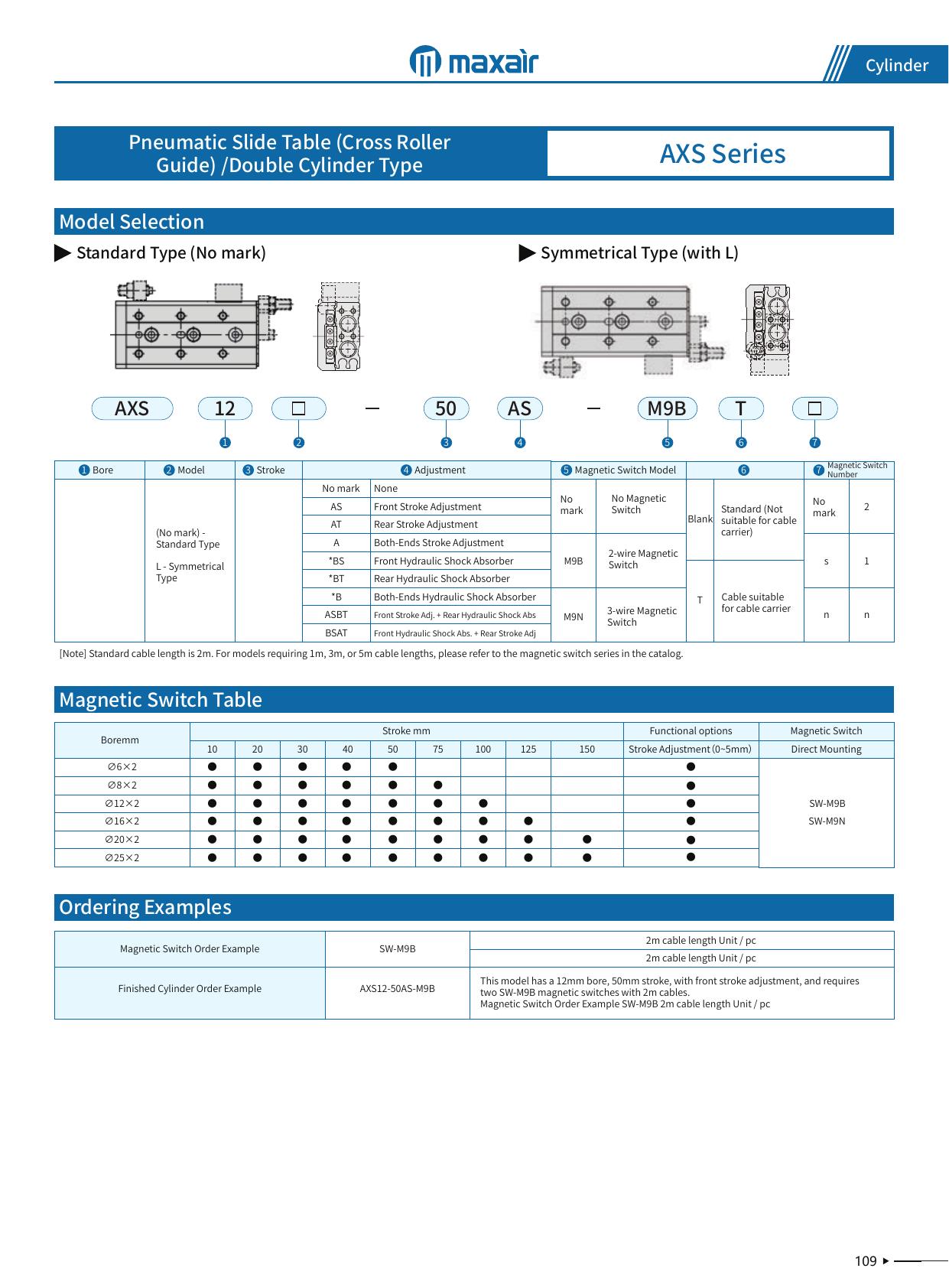

Select Model
