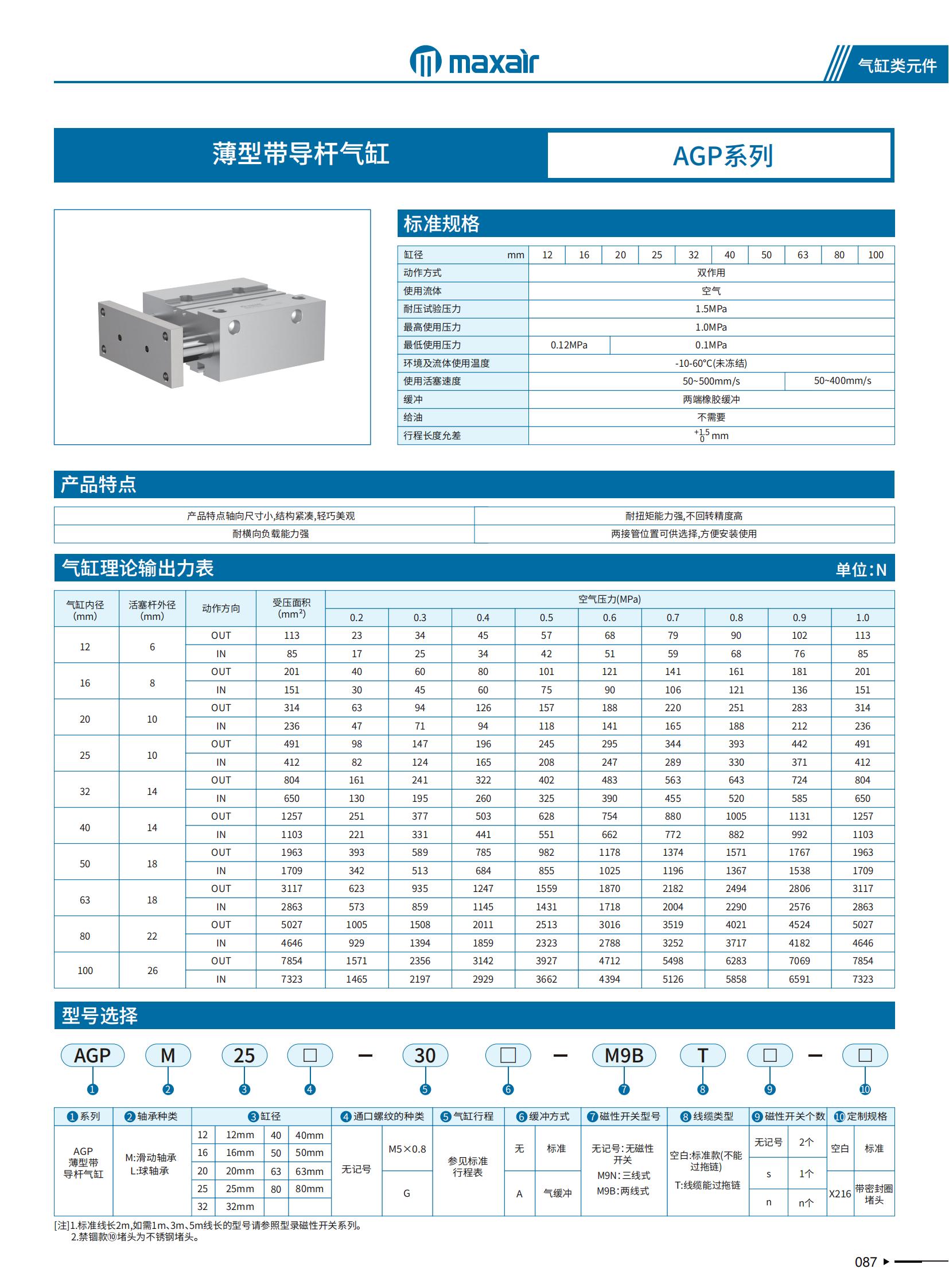

| Cylinder diameter | Ø12~Ø100 |
|---|---|
| Action mode | Double action |
| Using fluids | Air quality |
| Pressure resistance test pressure | 1.5MPa |
| Pressure resistance test pressure | 1.0MPa |
| Environment and fluid usage temperature | -10-60°C(unfrozen） |
| Buffer | Rubber buffer at both ends |
| Oil supply | No need |
