AHZ2K Series Heavy-Duty Gripper

Product Center

Leading Chinese Pneumatic Component Brand

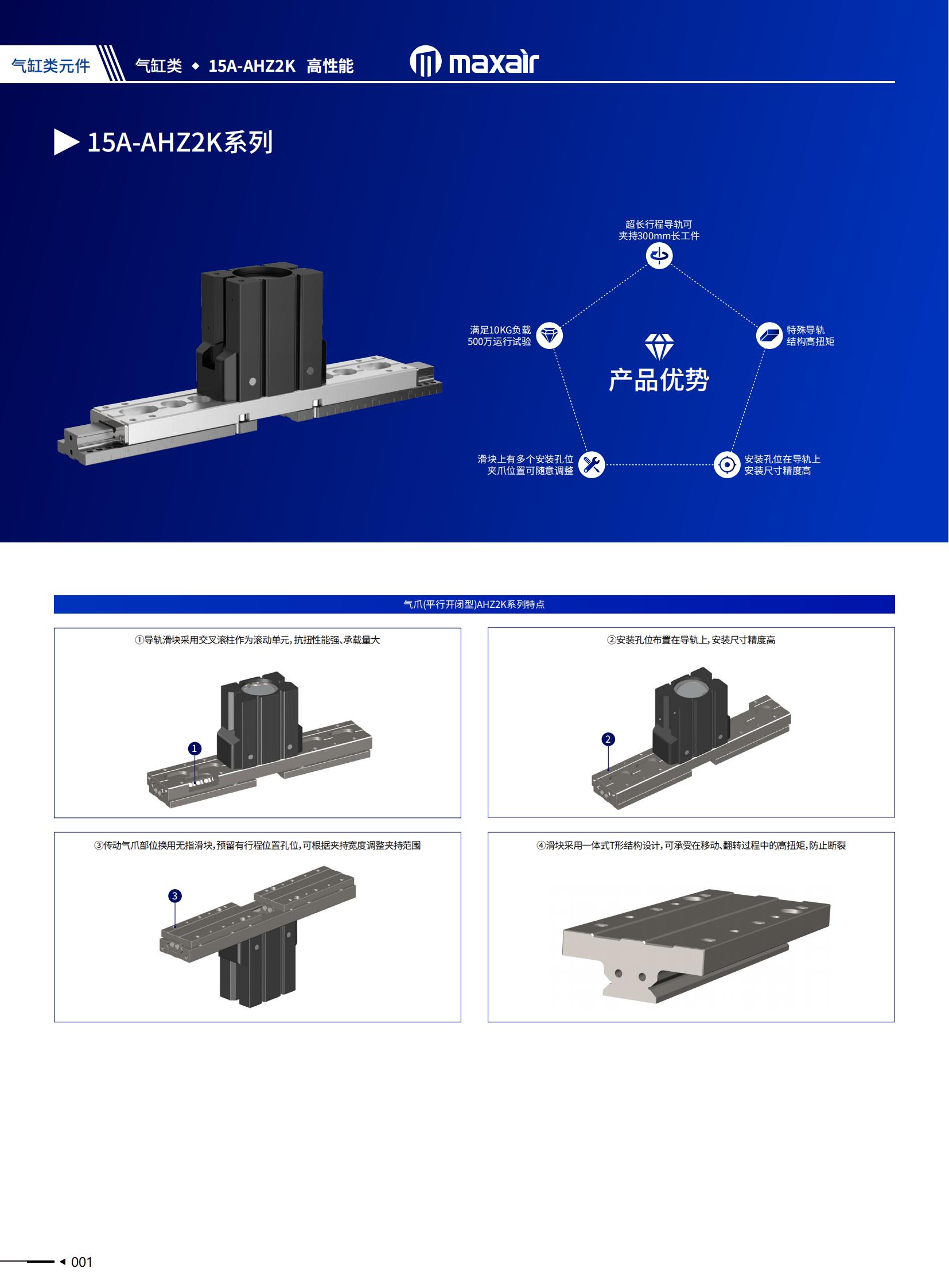

Meets 10kg load, 5 million cycle endurance test

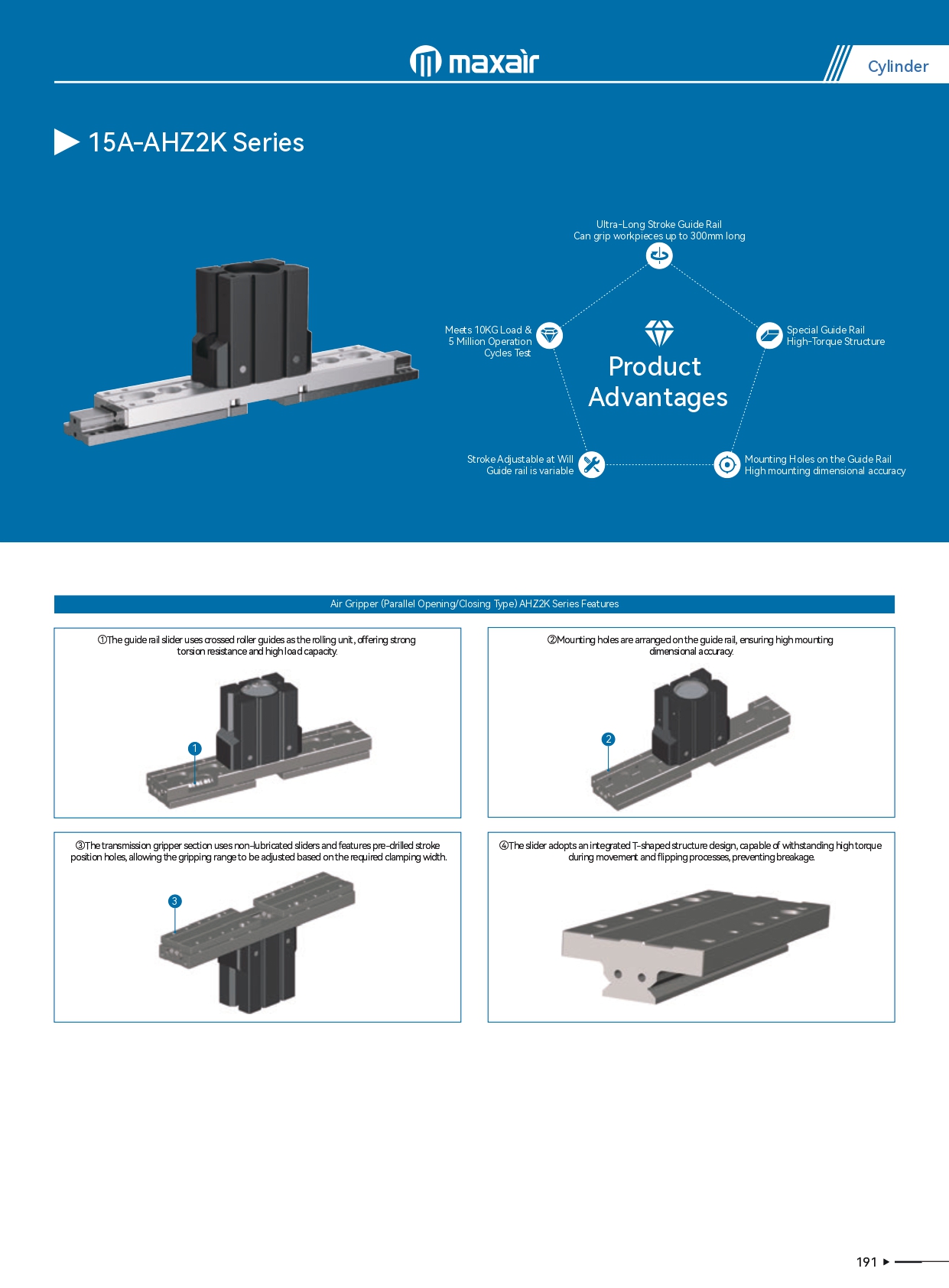

Guide rail and slider use crossed rollers as rolling elements, providing strong torque resistance and high load capacity
Mounting holes are positioned on the guide rail for high installation accuracy
Features fingerless sliders with pre-drilled position holes, allowing grip range adjustment based on workpiece width
Slider features an integrated T-shaped structural design to prevent breakage under high torque during motion
