Battery cell clamp

回到顶部

Product Center

Leading Chinese Pneumatic Component Brand

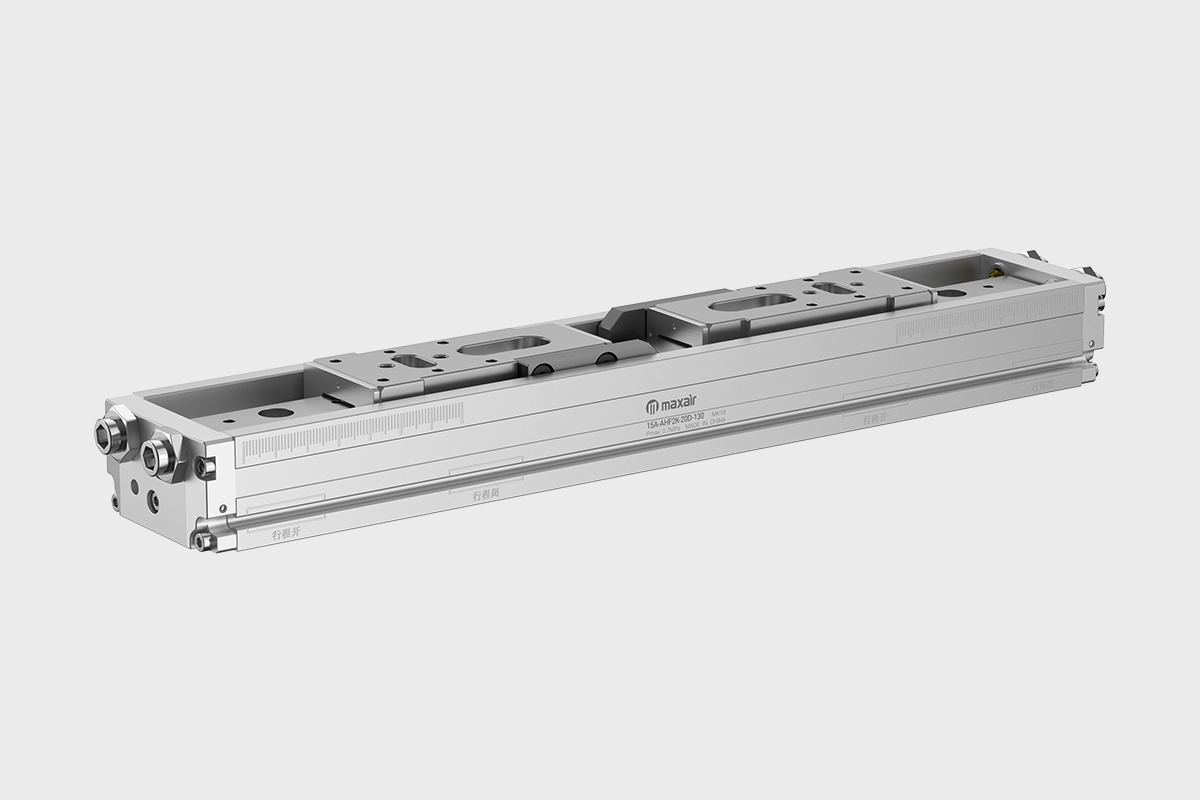

Battery cell clamp AHF2K Series

Allowable pitching moment Mp	44N·m
Allowable deflection moment My	53N·m
Allowable rotational moment Mr	90N·m
CT value (at 0.4 MPa)	＜300ms
Max. vertical static load	490N
Air inlet method	Bottom (default) and end face

Product Introduction

Select Model

Select Size

Are you interested in MAXAIR pneumatic components?

We'll provide you with solutions, and you can contact our product experts at any time.
