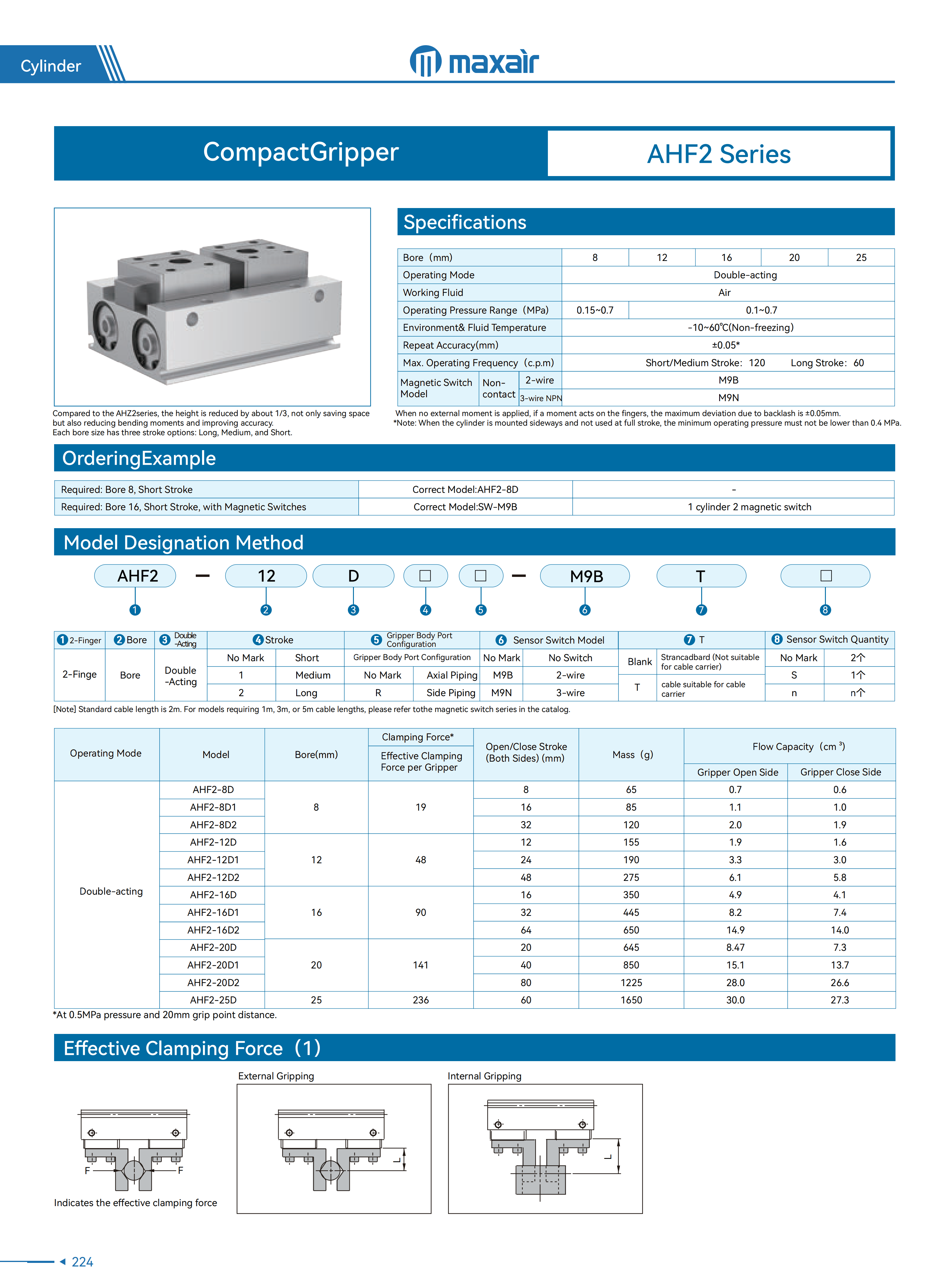

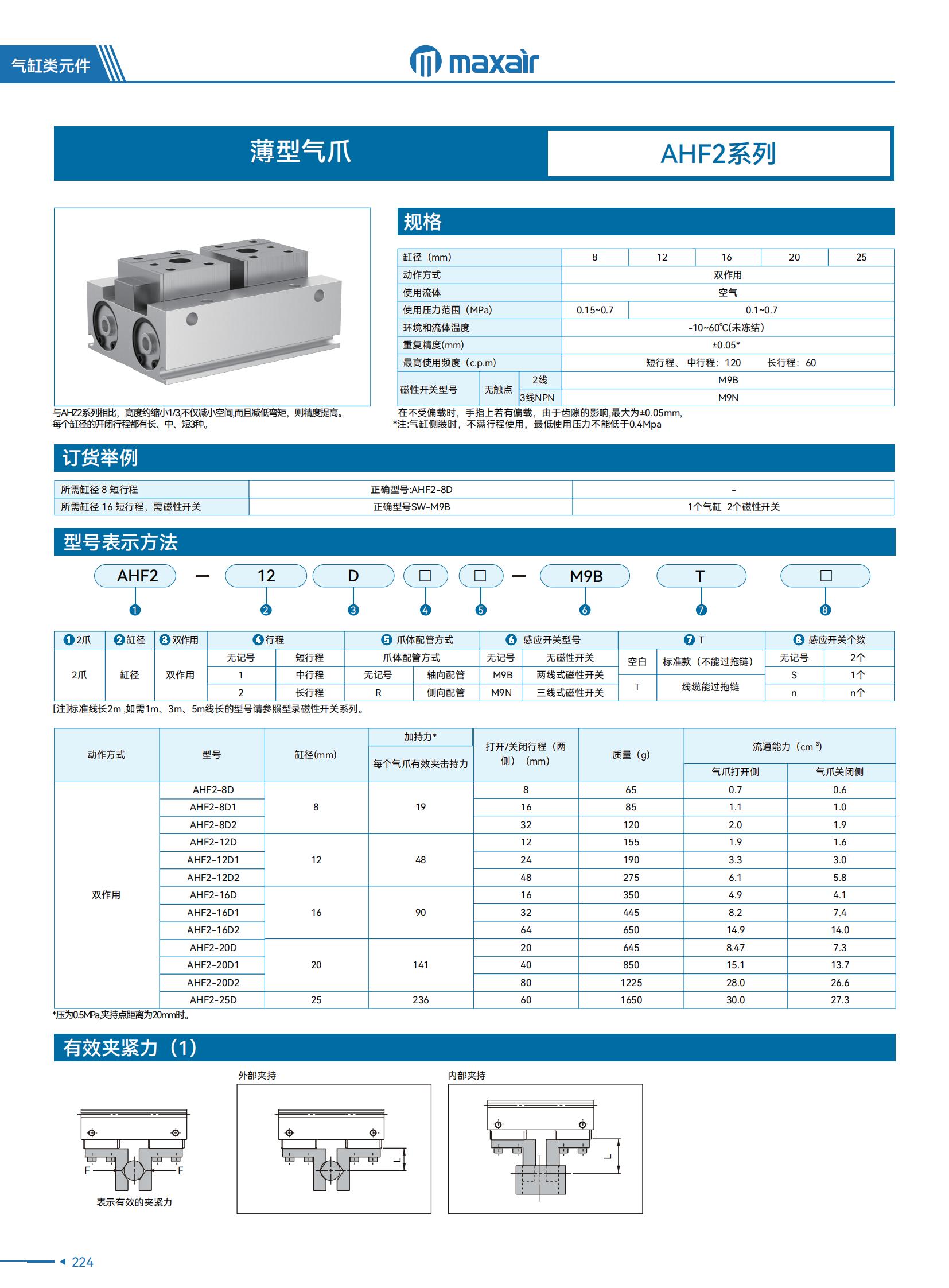

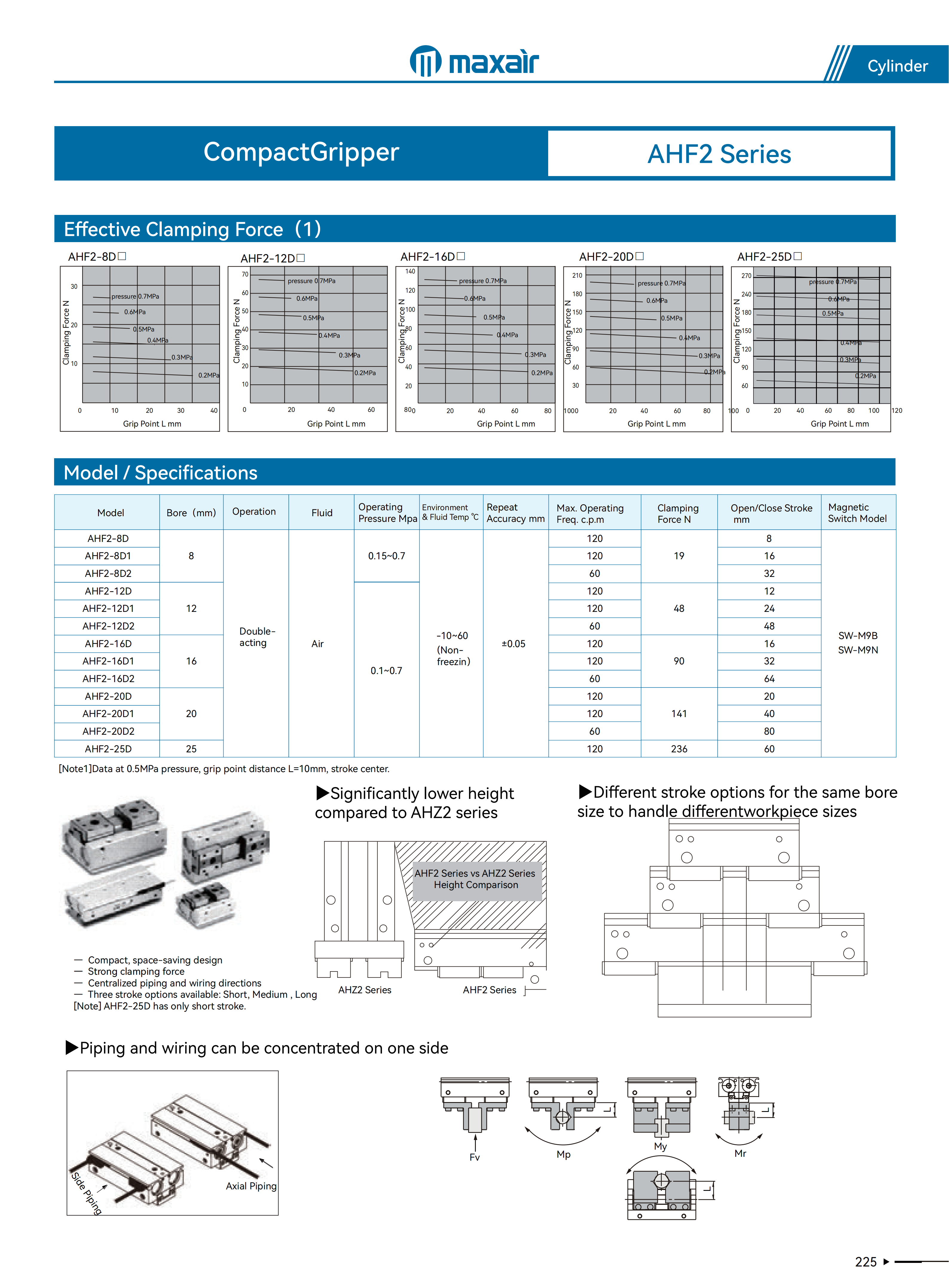

Bore（mm)
|
8~25 |
|---|---|
|
Operating Mode
|
Double-acting
|
|
Working Fluid
|
Air
|
|
Operating Pressure Range（MPa)
|
0.1~0.7 |
|
Environment& Fluid Temperature
|
-10~60℃(Non-freezing） |
|
Repeat Accuracy (mm)
|
±0.05 |
|
Max. Operating Frequency（c.p.m)
|
Short/Medium Stroke：120、Long Stroke：60
|
|
Magnetic Switch Model
|
M9B |
