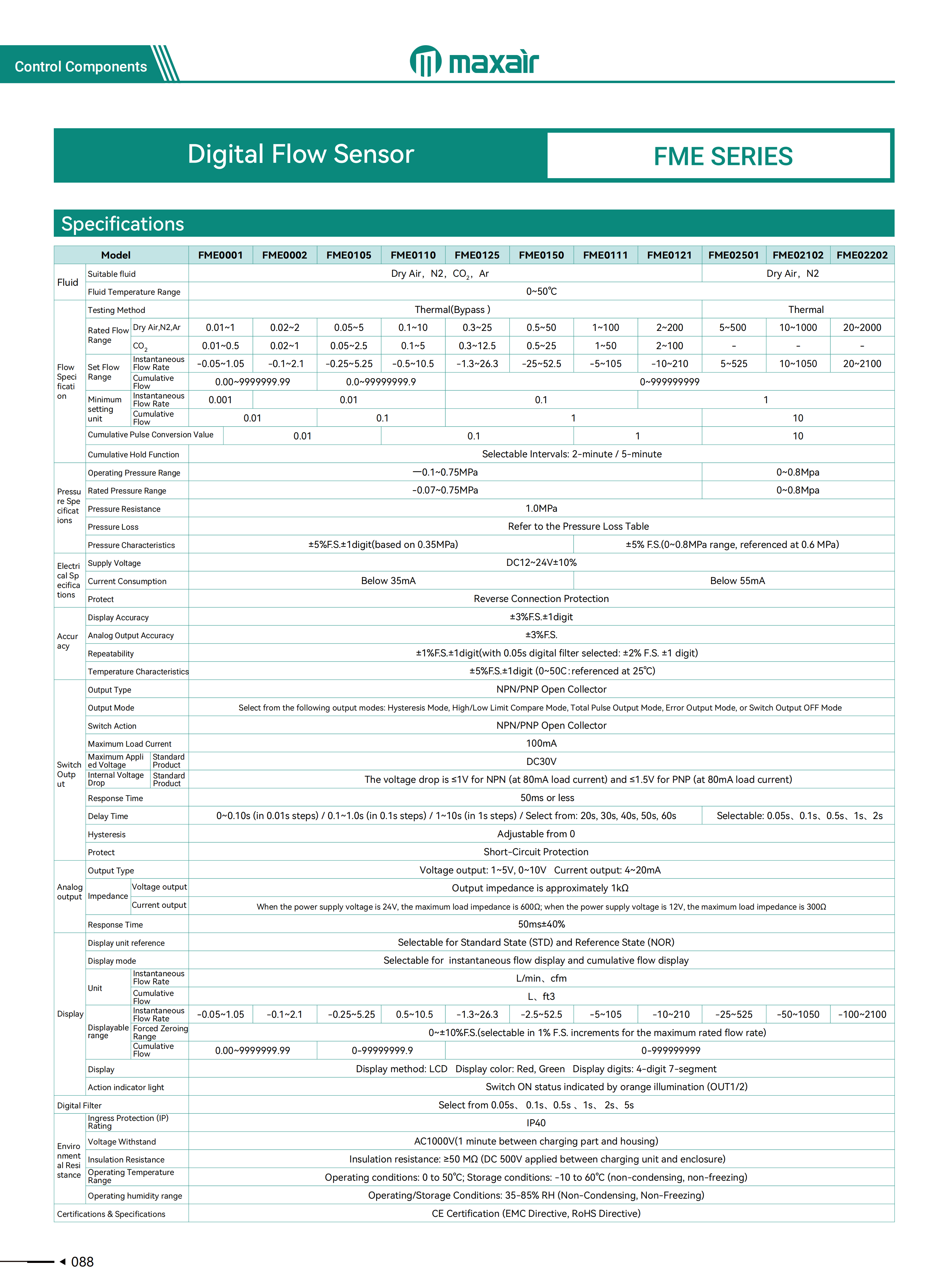

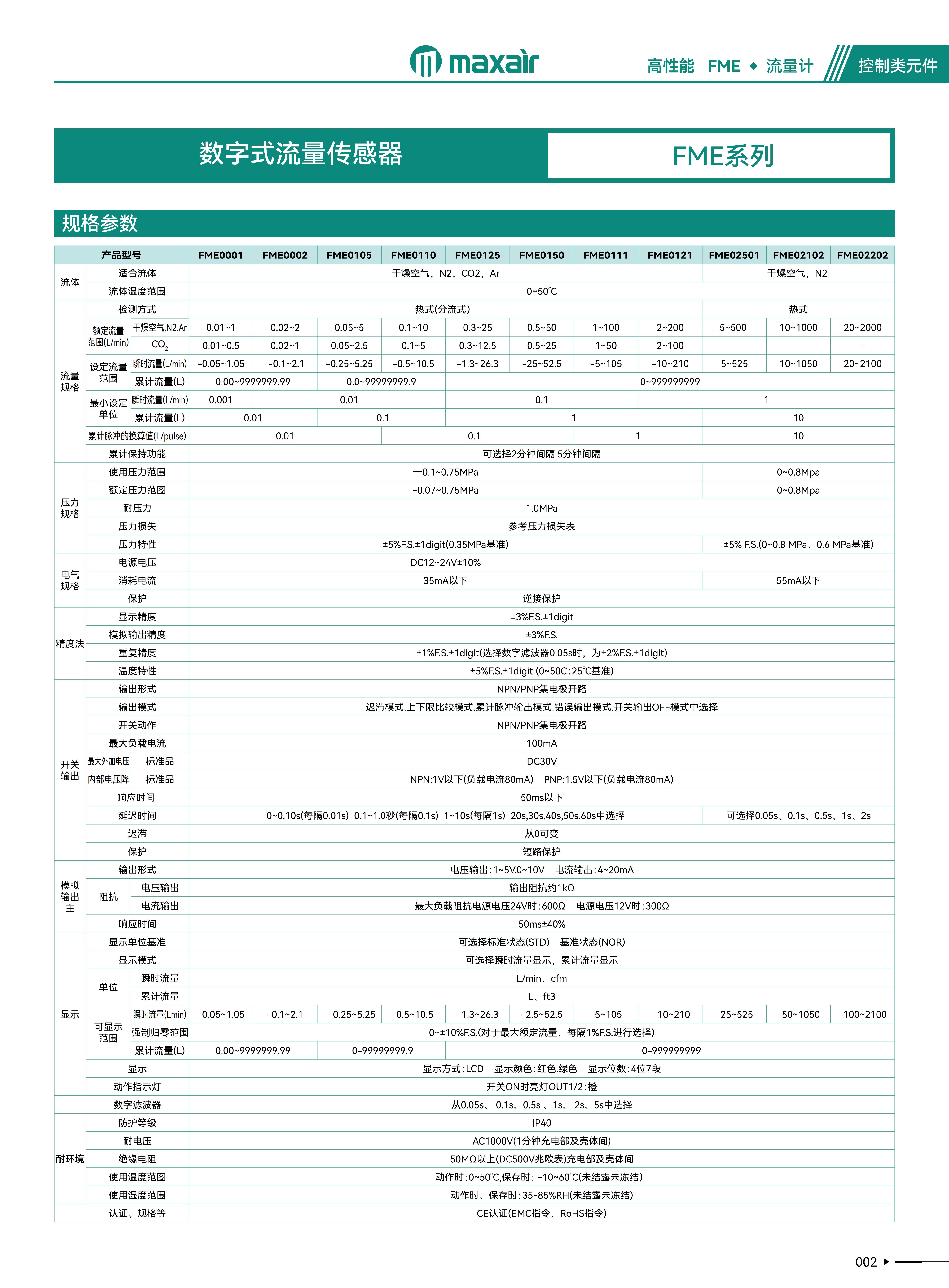

Suitable fluid
|
Dry Air ，N2，CO2，Ar
|
|---|---|
|
Fluid Temperature Range
|
0~50℃ |
|
Testing Method
|
Thermal
|
|
Pressure Resistance
|
1.0MPa |
|
Display Accuracy
|
±3%F.S.±1digit |
|
Repeatability
|
±1%F.S.±1digit(with 0.05s digital filter selected: ±2% F.S. ±1 digit)
|
|
Temperature Characteristics
|
±5%F.S.±1digit (0~50C﹕referenced at 25℃)
|
|
Response Time
|
50ms±40%
|
|
Ingress Protection (IP)
Rating
|
IP40 |
|
Certifications & Specifications
|
CE Certification (EMC Directive, RoHS Directive)
|
