Valve Type
|

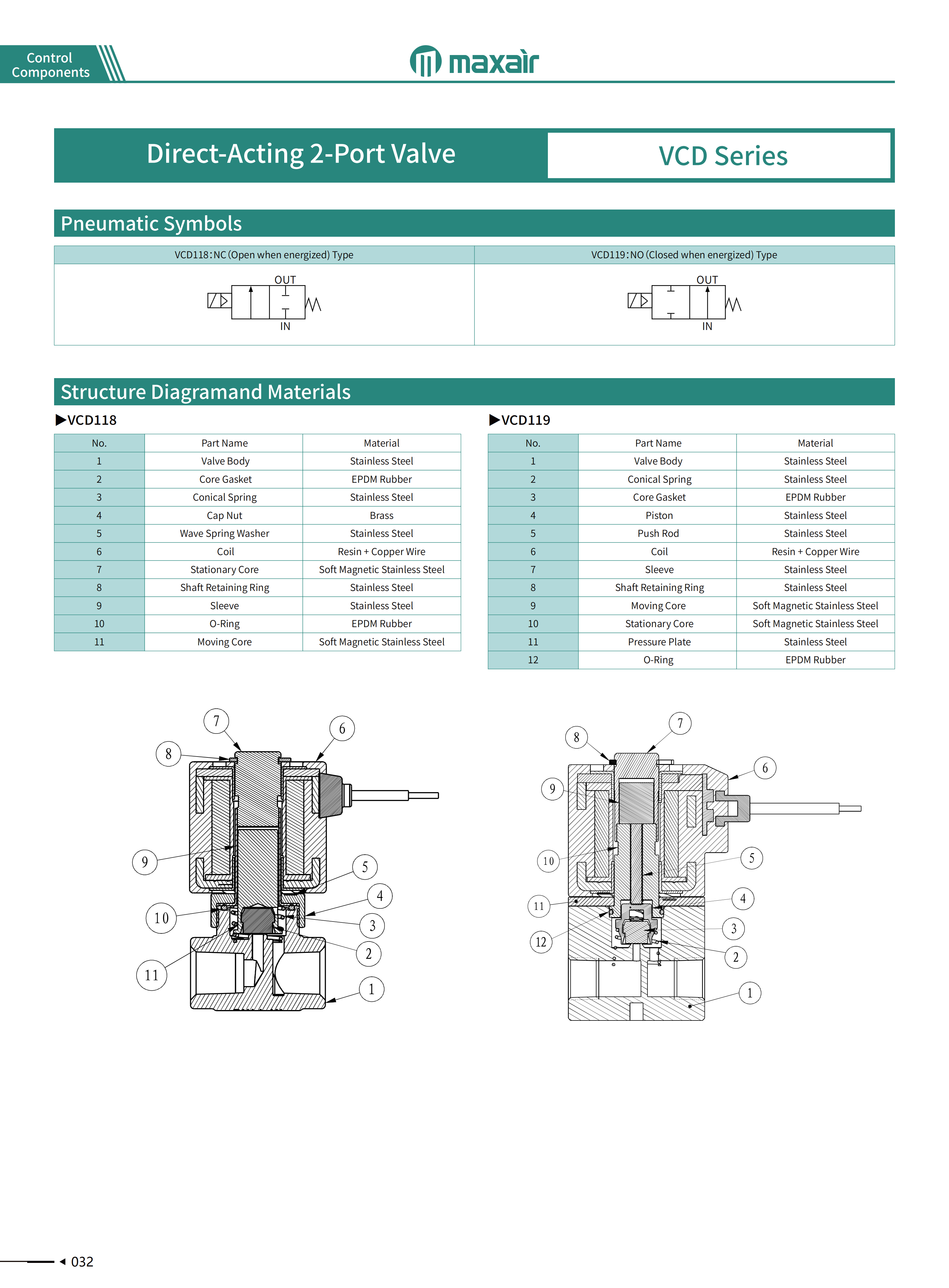

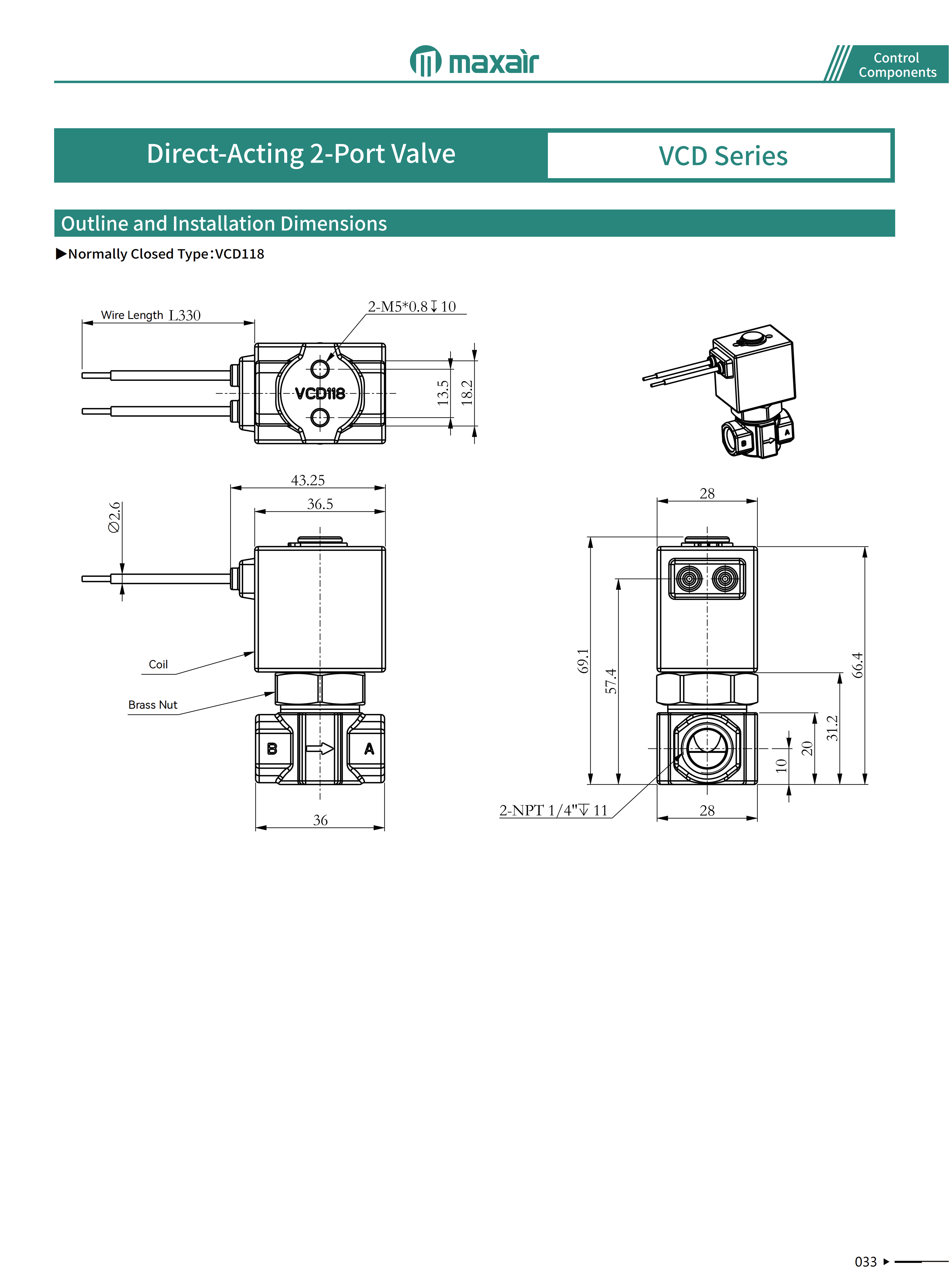

Direct-Acting 2-Port Valve
|
|
|---|---|---|
|
Operation Type
|
Normally Closed
|
Normally Open
|
|
Model
|
VCD118 | VCD119 |
|
Port Size
|
∅2.9mm | ∅1.6mm |
|
Operating Pressure
|
-0.1~0.7Mpa | 0~0.5Mpa |
|
Rated Voltage
|
DC24V±10% | |
|
Rated Power
|
6.5W | 7W |
|
Ambient Temperature
|
5～50℃ | |
|
Applicable Fluid
|
Air, Vacuum
|
Air
|
