The solenoid valve with bus integrated control manages the air circuit through one inlet and multiple outlets, achieving control over pneumatic components in multiple pipelines

Product Center

Leading Chinese Pneumatic Component Brand

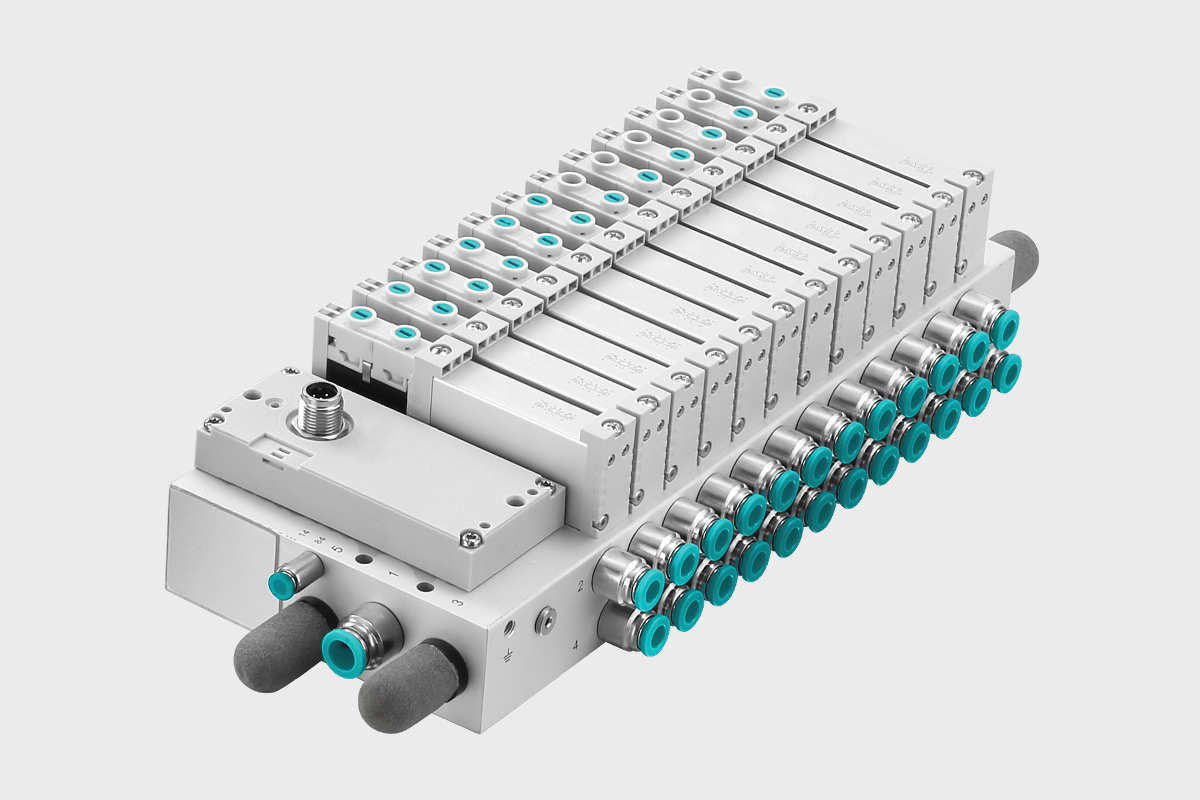

MSY Bus control valve island

Used for modular pneumatic control systems
It possesses excellent flexibility and scalability

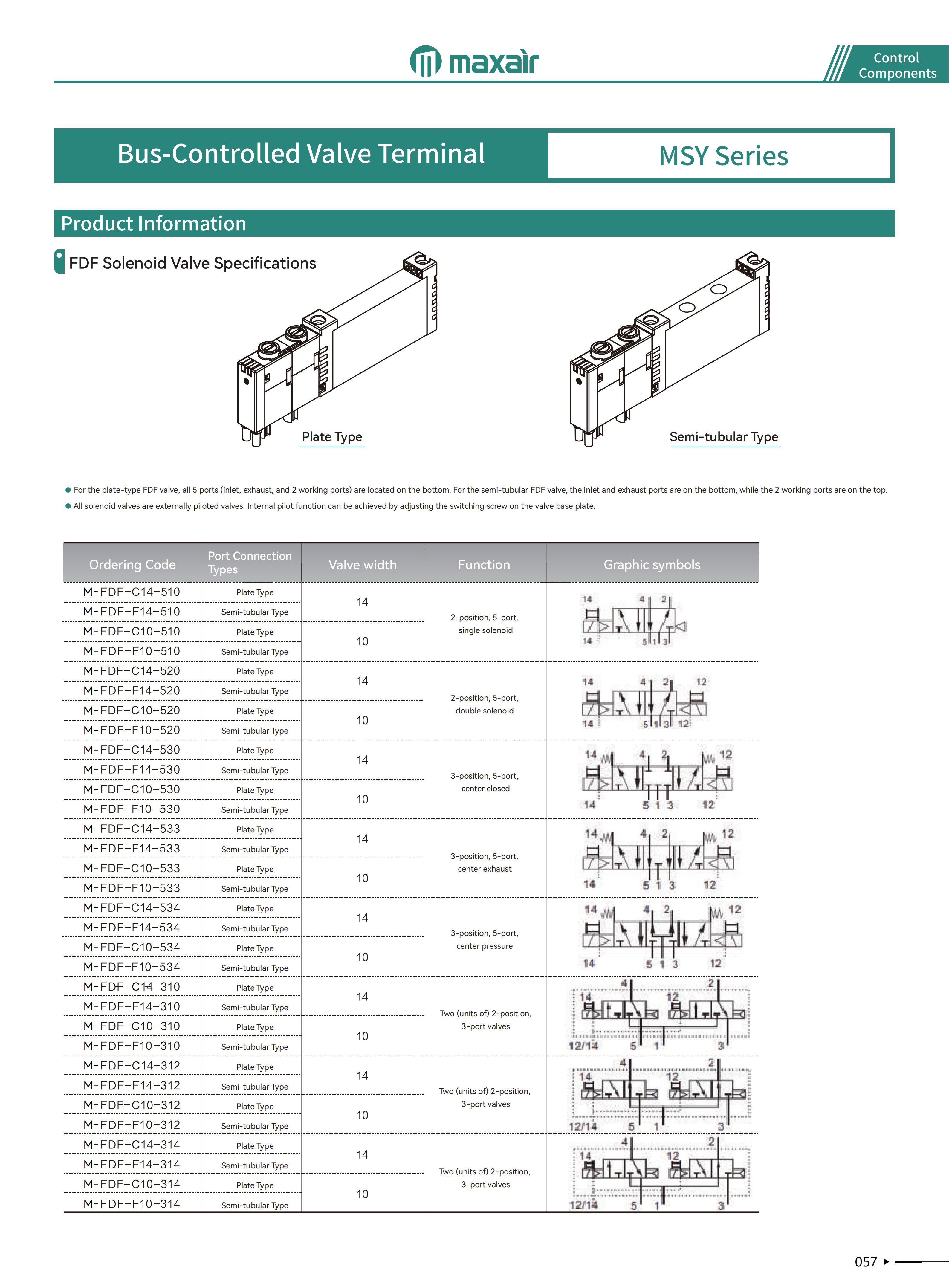

Solenoid valves are divided into 10mm and 14mm specifications
Each coil has an independent power management module, which can reduce power consumption by 70%
The indicator lights are visible from all angles, facilitating quick troubleshooting
The terminal has up to 24 valve positions
Protection level: IP65
Internal and external pilot options are available
