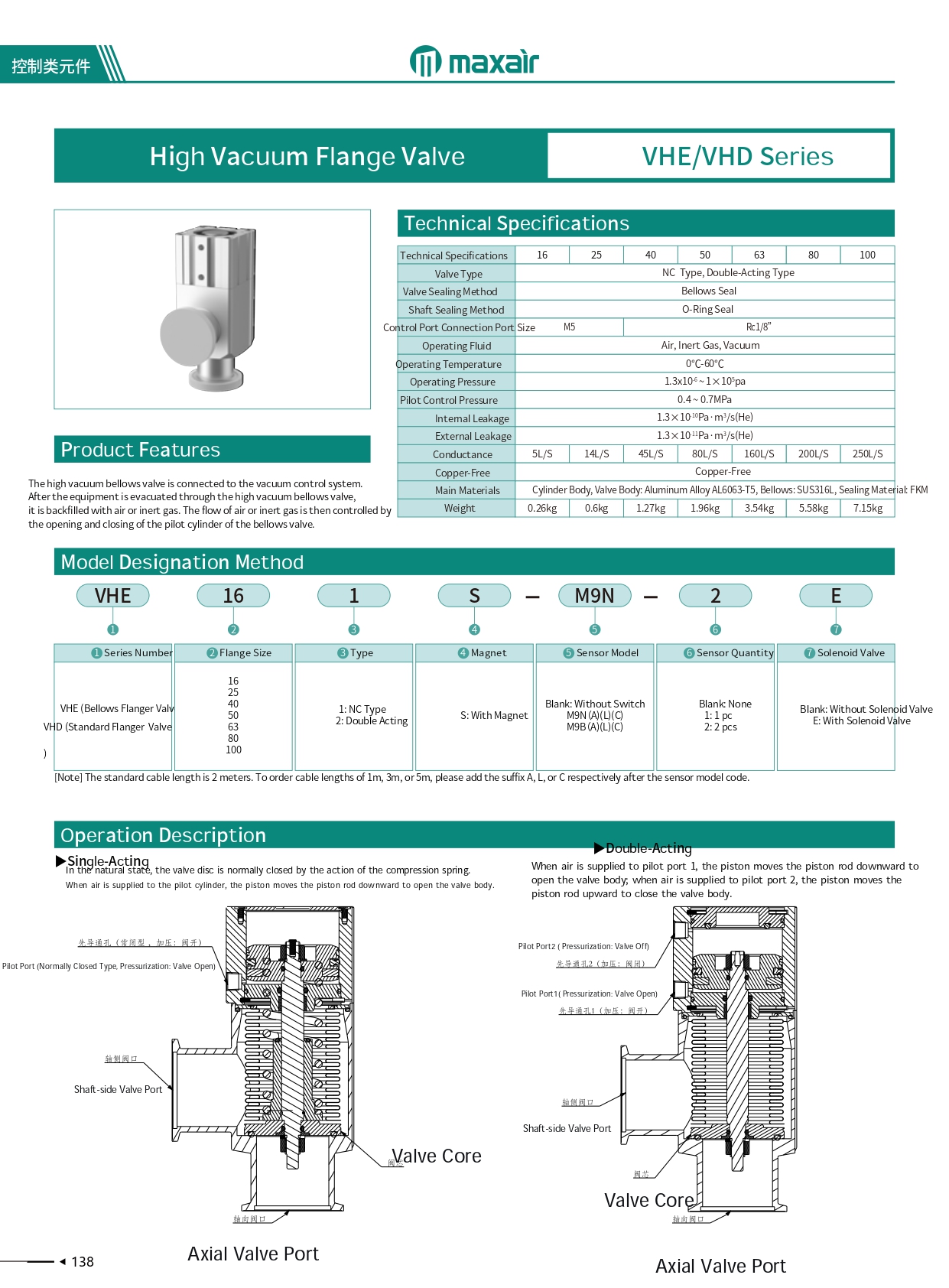

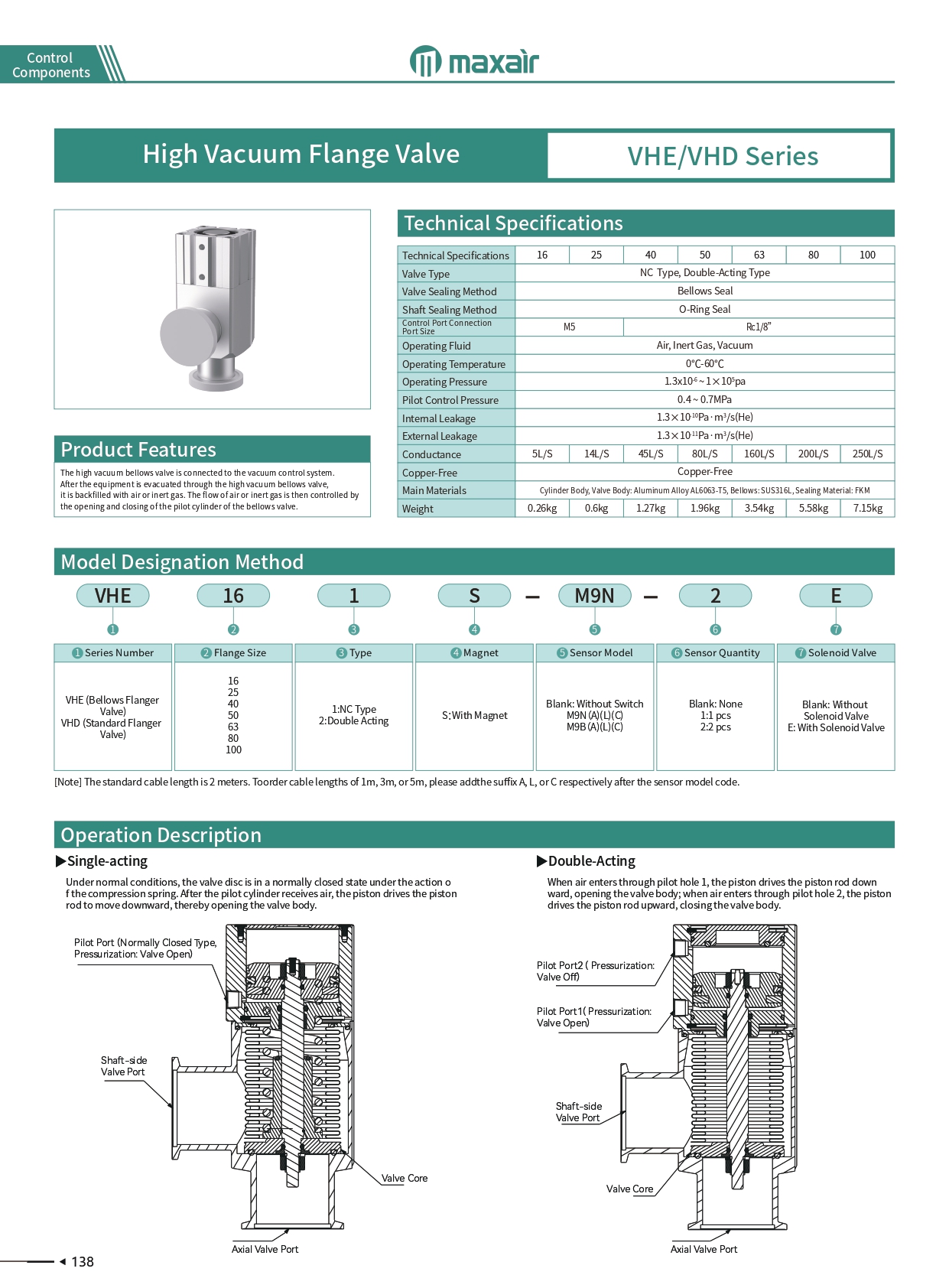

| Valve Type | NC Type, Double-Acting Type |
|---|---|
| Valve Sealing Method | Bellows Seal |
| Shaft Sealing Method | O-Ring Seal |
| Operating Fluid | Air, Inert Gas, Vacuum |
| Operating Temperature | 0-60℃ |
| Pilot Control Pressure | 0.4 ~ 0.7MPa |
| Copper-Free | Copper-Free |
| Main Materials | Cylinder Body, Valve Body: Aluminum Alloy AL6063-T5, Bellows: SUS316L, Sealing Material: FKM |
